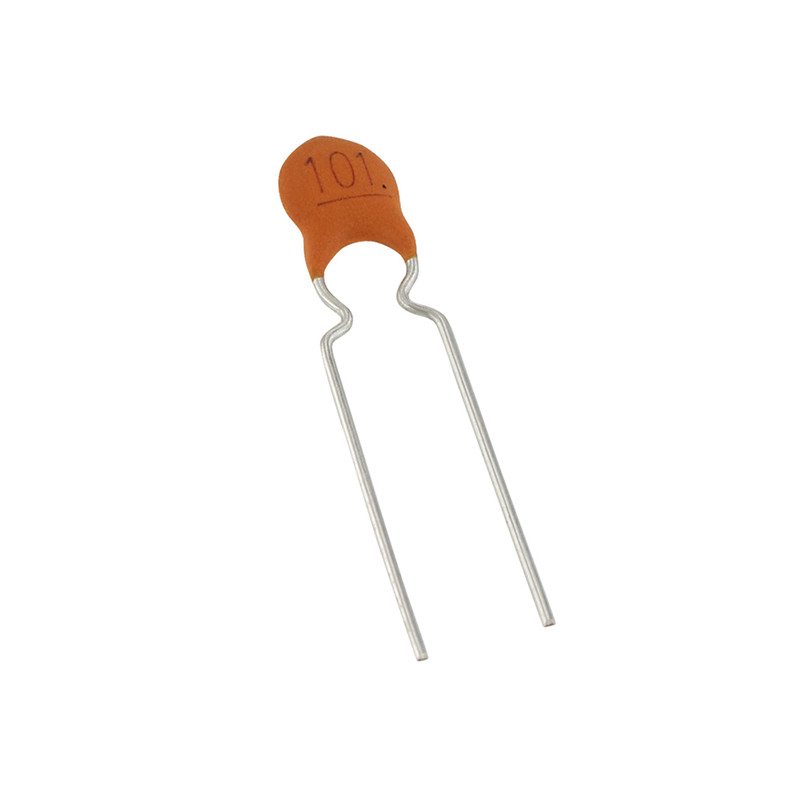

DCC Disc Capacitors
Five Advantages Of Products
- Ideal for use X/Y capacitor for AC line filter,electromagnetic interference suppression
- Ideal for use on D-A isolation and noise absorption for ADD modems sit hout transformers.
- In the power supply circuit, the rectifying circuit turns the ac into pulsating dc, and the rectifying circuit is followed by a large electrolytic capacitor
- As a connection between two circuits, ac signals are allowed to pass and be transmitted to the next circuit
- They are suitably used in bypass circuit,coupling circuit,filter circuit,and isolating circuit ect.
Product Details
suppression capacitors Key Specifications/Special Features:
1. Ideal for use as x/y capacitors for AC line filter electromagnetic interference suppression and primary-secondary coupling on switching powersupplies and AC adapters.Ideal for use on D-A isolation and noise absorption for DAA modems without transformers.
2. Harzardous Substances Compliance:All productas pass following compliance or standard:ROHS REACH PAHS HF,and Pathalates-pathalates Regulation.
3.Specifications
Climatic Catagory/Passive Flammability Class:25/125/21°C
Operating Temperature:-25~+125°C
Capacitance Range:pF~4700pF
Capacitance Tolerance: J±5% K±10% M±20%
Withstand Voltage Between:4000VAC
Insulation Resistance(I.R)≥1000MΩ(500VDC)
Temperature Characteristic:NPO SL Y5P Y5U Y5V
Flame Retardant Epoxy Resin(coating):Conforming to UL94V-0 standards
4.Standard atmospheric condition is as follows:
Temperature:25 ±2°C
Relative humidity:45~75%
Atmospheric pressure:86~106kp
