Five Advantages Of Products

Ideal for use X/Y capacitor for AC line filter,electromagnetic interference suppression
Ampere capacitance refers to the capacitance used in such occasions, that is, when the capacitor fails, it will not cause electric shock or endanger personal safety.
As a connection between two circuits, ac signals are allowed to pass and be transmitted to the next circuit
The pulsating dc voltage after rectification becomes a relatively stable dc voltage
The pulsating dc voltage after rectification becomes a relatively stable dc voltage

Product Details

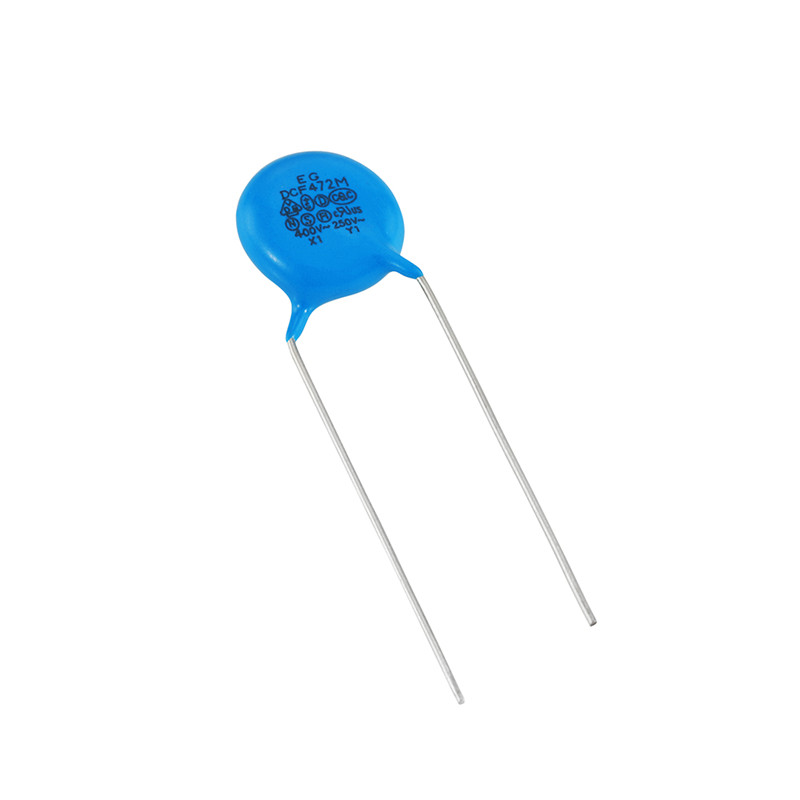

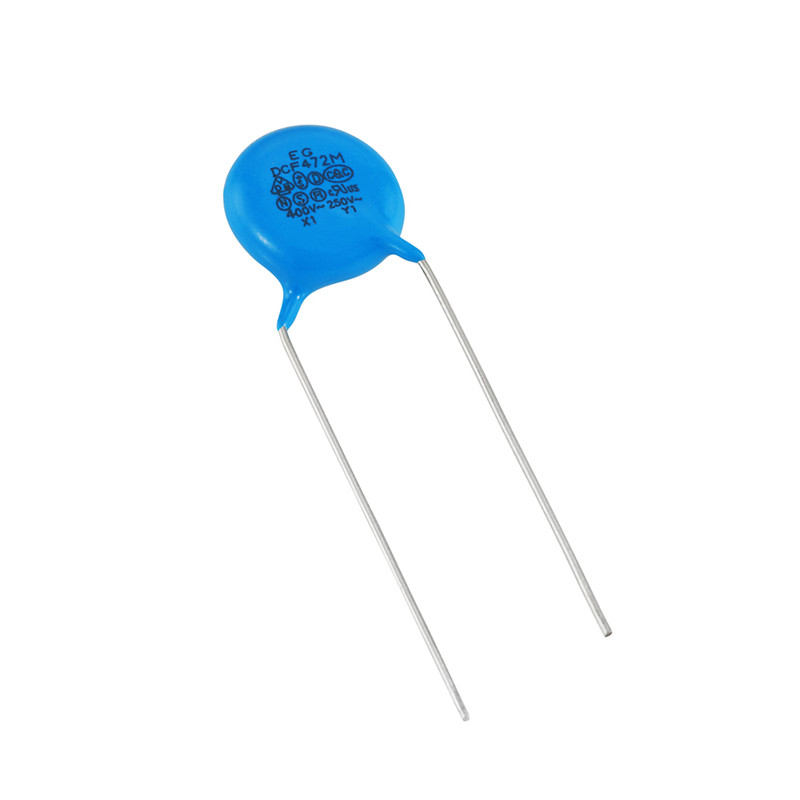

suppression capacitors Key Specifications/Special Features:

1. Ideal for use as x/y capacitors for AC line filter electromagnetic interference suppression and primary-secondary coupling on switching powersupplies and AC adapters.Ideal for use on D-A isolation and noise absorption for DAA modems without transformers.

2. Harzardous Substances Compliance:All productas pass following compliance or standard:ROHS REACH PAHS HF,and Pathalates-pathalates Regulation.

3.Specifications

Climatic Catagory/Passive Flammability Class:25/125/21°C

Operating Temperature:-25~+125°C

Capacitance Range:pF~4700pF

Capacitance Tolerance: J±5% K±10% M±20%

Withstand Voltage Between:4000VAC

Insulation Resistance(I.R)≥1000MΩ(500VDC)

Temperature Characteristic:NPO SL Y5P Y5U Y5V

Flame Retardant Epoxy Resin(coating):Conforming to UL94V-0 standards

4.Standard atmospheric condition is as follows:

Temperature:25 ±2°C
